Specification Of Electro Suspension Magnets
Technical Data of Suspension Electro Magnets
| STR Model | Magnet Dimensions mm | Magnet Height mm | Magnet Voltage VDC | Magnet Wattage | Approx Weight Kgs |
| STR 241 | 600 X 600 | 550 | 115 | 1650 | 430 |
| STR 301 | 750 X 750 | 650 | 115 | 2700 | 700 |
| STR 361 | 900 X 900 | 500 | 115 | 3800 | 1050 |
| STR 422 | 1050 X 1050 | 550 | 230 | 5000 | 1600 |
| STR 482 | 1200 X 1200 | 600 | 230 | 6600 | 2250 |
| STR 542 | 1350 X 1350 | 650 | 230 | 8000 | 3150 |
| STR 602 | 1500 X 1500 | 750 | 230 | 10000 | 4000 |
| STR 662 | 1650 X 1650 | 800 | 230 | 12250 | 5200 |
| STR 722 | 1800 X 1800 | 800 | 230 | 14500 | 7250 |
| STR 782 | 2000 X 2000 | 900 | 230 | 17000 | 9100 |
Specification Of Suspended Permanent Magnet

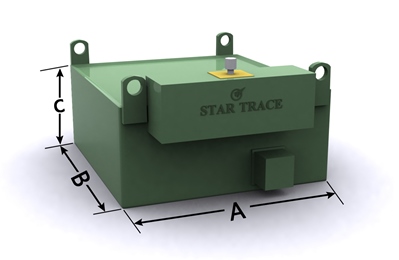

| Model No | Belt width(mm) | Suspension height(≤mm) | Materials Thickness(≤mm) | Weight(kg) | Belt speed(≤m/s) | Overall dimension(mm) | ||
| A | B | C | ||||||
| STPS-115 | 400 | 125 | 60 | 115 | 4.5 | 400 | 300 | 230 |
| STPS-65 | 400 | 75 | 30 | 65 | 4.5 | 400 | 250 | 140 |
| STPS-206 | 500 | 150 | 90 | 206 | 4.5 | 500 | 350 | 260 |
| STPS-96 | 500 | 100 | 50 | 96 | 4.5 | 500 | 260 | 160 |
| STPS-295 | 600 | 175 | 120 | 295 | 4.5 | 600 | 450 | 280 |
| STPS-158 | 600 | 130 | 60 | 158 | 4.5 | 600 | 350 | 180 |
| STPS-450 | 650 | 200 | 150 | 450 | 4.5 | 650 | 600 | 300 |
| STPS-450 | 650 | 200 | 150 | 450 | 4.5 | 650 | 400 | 300 |
| STPS-680 | 800 | 250 | 200 | 680 | 4.5 | 950 | 950 | 380 |
| STPS-550 | 800 | 200 | 150 | 550 | 4.5 | 800 | 600 | 300 |
| STPS-1180 | 1000 | 300 | 250 | 1180 | 4.5 | 1100 | 1000 | 380 |
| STPS-1670 | 1200 | 350 | 300 | 1670 | 4.5 | 1300 | 1340 | 420 |
| STPS-2350 | 1400 | 400 | 350 | 2350 | 4.5 | 1500 | 1500 | 420 |
| STPS-2850 | 1600 | 450 | 400 | 2850 | 4.5 | 1750 | 1750 | 460 |
